Endosseous blade implants 515

A specially prepared tray was made and an elastic impression taken of the ridge area with the continuous groove (Fig. 11-169). The master stone mode] was poured into the impression. The shallow groove in the separated hardened stone model was deepened to the various depths indicated by Panorex studies of the entire jaw (Fig. 11-170). A cobalt-chrome casting was made. Like individual blades, it was wedge-shaped.

During the following visit, the tissue was once again incised and reflected, and the continuous blade

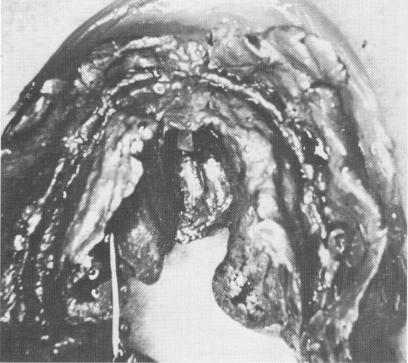

Fig. 11-169. To obtain an accurate impression, the elastic material was forced into the groove.

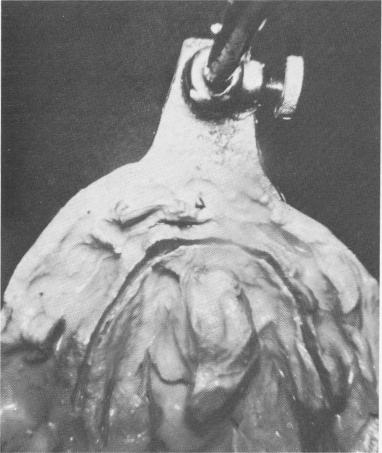

Fig. 11-170. The groove was deepened in the master stone model to comply with the x-ray interpretation.

was placed inside the original groove (Fig. 11-171). It was then tapped deeper with a plastic-headed mallet and inserting instrument until its shoulder was buried (Fig. 11-172). The site was closed with interrupted sutures (Fig. 11-173), and a prefabricated

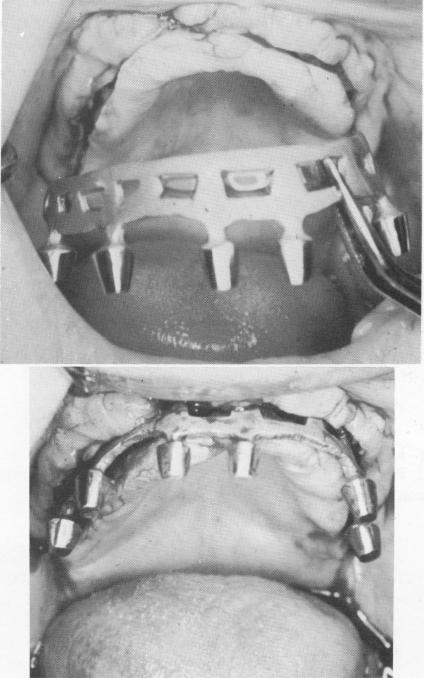

Fig. 11-171. A one-piece continuous blade was inserted into the groove. (From Linkow, L. I., and Weiss, J. L.: The endosseous blade: a progress report, Prom. Dent., No. 5, 1969.)

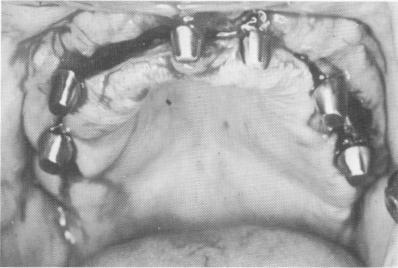

Fig. 11-172. The blade was tapped deeper until its shoulder was slightly below the alveolar crest.
