576 Theories and techniques of oral implantology
Fig. 12-115. A, Healing around the posts was uneventful. B, The inside of the bite registration block was relined with silicone and a final wax interocclusal record of centric relation was taken.

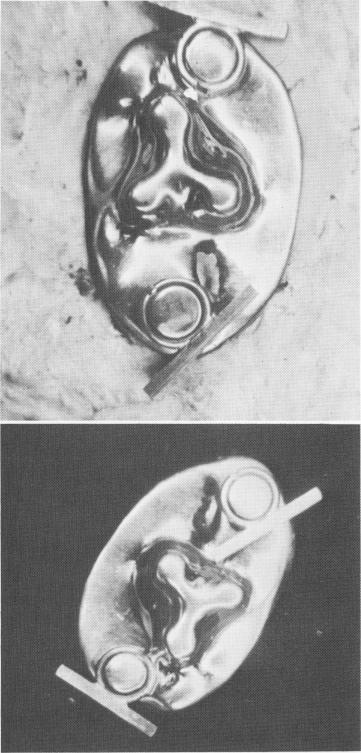

Fig. 12-116. A specially designed template with unique ring lock—resilient type attachments was fabricated.
B
A
Fig. 12-117. A, An excessive amount of intermaxillary space existed between both atrophied arches. B, The implant dentures mounted on the articulator.
|
