Maxillary endosseous implant interventions 441

mix of acrylic was pushed between the peripheral rails of the template, thereby locking the terminal protruding portions of the pins. The hardened acrylic was trimmed flush with the occlusal rims of both rails (Fig. 10-208).

An elastic impression was taken of the entire template with an occlusal bite record to complete the palateless denture (Fig. 10-209). (The denture also could have been prefabricated from the original gold double rail template, since the acrylic was not intended to extend beyond the occlusal borders of the double rails. If done in this manner, the technician merely had to fill in the space between both rails with stone or plaster before fabricating the denture.)

The palateless denture was placed over the rail template (Fig. 10-210) and had good retention be-

Fig. 10-207. The template was cemented over the one remaining tooth, and pin implants were drilled through the template.

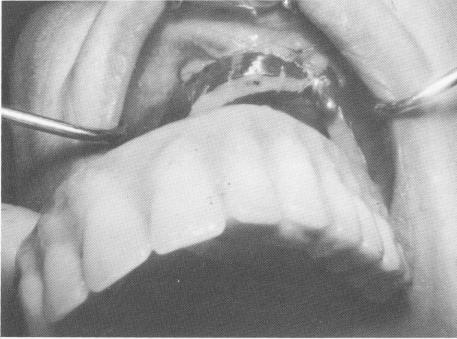

Fig. 10-209. A full arch palateless removable denture was fabricated to fit accurately over the rail template.

Fig. 10-210. The removable appliance is fitted.

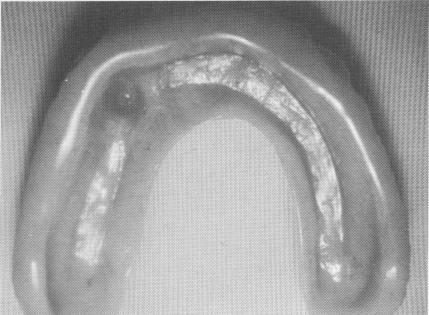

Fig. 10-208. The pins were secured to one another and to the double rail by fast cure acrylic. When the acrylic hardened, it was carefully trimmed flush with the occlusal peripheral borders of both rails.

Fig. 10-211. The articulation must be accurately balanced.
