full crown restoration, the gingival tissue was retracted, and an elastic impression was taken to include the prepared tooth, the edentulous area anterior to it, and the cuspid tooth. A wax bite was also taken. A two-unit acrylic-and-gold-veneer pros-thesis was processed (Fig. 8-62). It was tried in the mouth and all necessary adjustments were made. A specially sized helical bur was then used in a contra-angle to create a hole in the desired area of bone (Fig. 8-63). An appropriate narrow ridge im-

Fig. 8-68. The splint is carefully balanced.

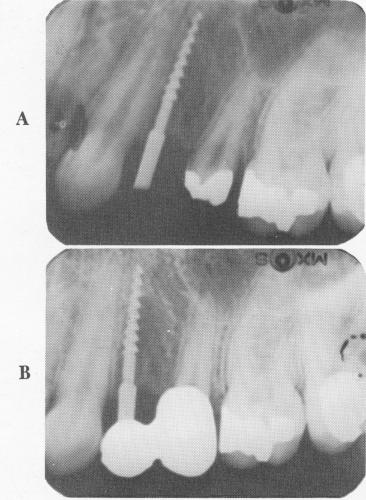

Fig. 8-69. A, An intraoral radiograph showing the narrow ridge implant in the bone to its desired depth. B, The x-ray shows the prosthesis cemented over the implant and tooth abutment.

plant was selected (Fig. 8-64), inserted into the hexagonal prolongator (Fig. 8-65), and carefully screwed into place (Fig. 8-66).

The two-unit, prefabricated splint was fitted over the implant shaft and prepared bicuspid tooth (Fig. 8-67). (If any interference occurs from such a post, a larger hole can be made on the under-surface of the abutment crown.) The bridge was then cemented into position with a hard cement (Fig. 8-68). During this procedure, as should be done during all implant interventions, x-rays were taken as guides (Fig. 8-69).

UNUSUAL SINGLE TOOTH IMPLANTS

A significant number of presenting cases raise atypical problems. The following are characterized

Fig. 8-70. A, The internal surface of the buccal half of a completely sagittally fractured mandibular first molar. B, Another view showing the buccal surface of the crown and roots. The lingual half of the tooth is still in the bone.
